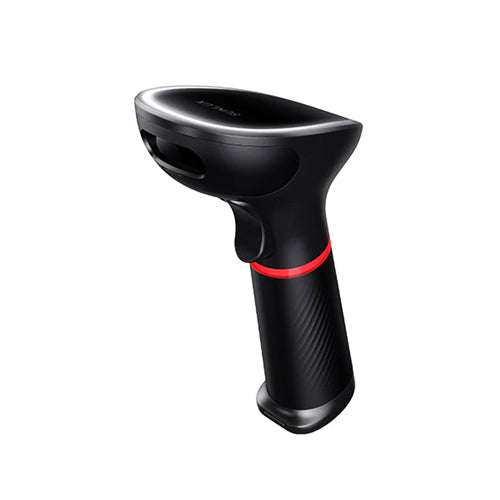

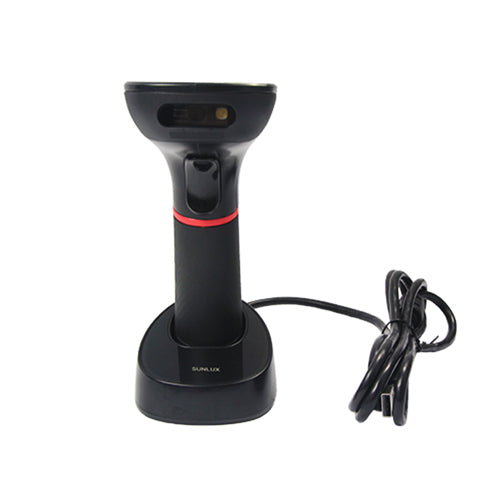

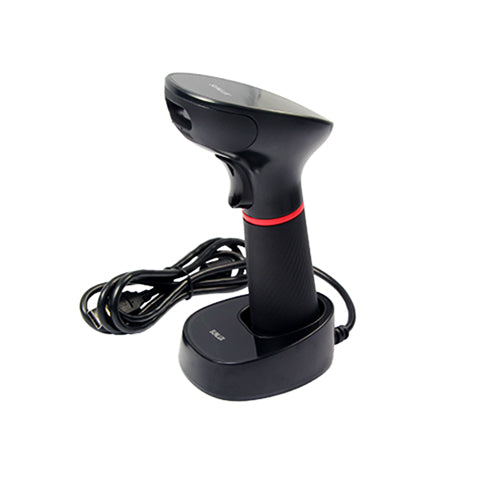

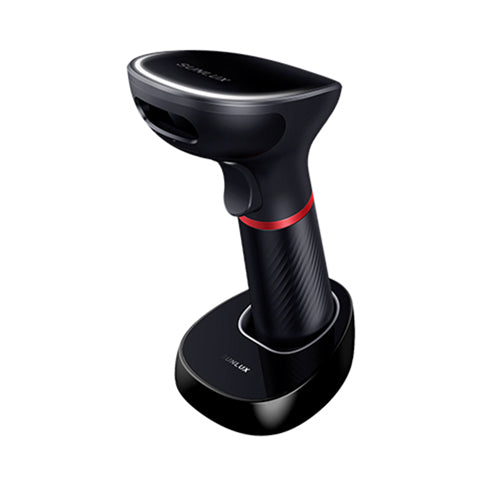

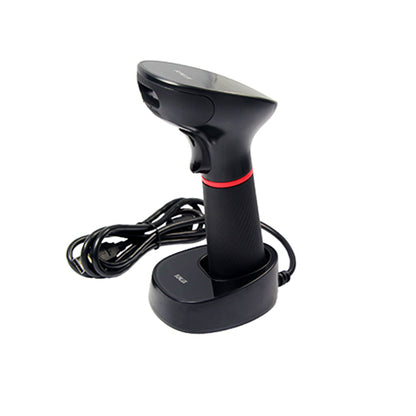

Sunlux XL-9610 2D Wireless Barcode Scanner

Sunlux XL-9610 2D Wireless Barcode Scanner

Sunlux XL-9610 2D Wireless Barcode Scanner

  • Flexible in reading 1D&2D code (including colored, stained, and fuzzy code)
  • Continuous battery life: 16Hours
  • Long working time: one full charge support 60,000/times scan
  • Scan speed: 60fps
  • USB Interface
  • With memory, can store 100,000 EAN-13 barcode
  • 2600mAh Battery Capacity
  • Transfer distance 2.4G: 150M & Bluetooth:10M
  • 1 year limited warranty

Full Specifications

 Image Sensor CMOS
Light Levels White LED (Lighting) RED aiming light
CPU 32bit ARM
Exposure Global exposure
Image size 640x480 pixels
Scanning speed 60fps
Decoding Depth 60-360mm（13mil PCS90%）
Minimum Resolution 3mil
Interface USB
Scan Mode Manual& Automatic
Materials ABS+TPU
Size L*W*H : 163*68*80(mm)
Weight Scanner: 185g
Charging base: 220g
Input Voltage DC 3.6V-5.5V
Working current 250mah
Stand-by current <1uA

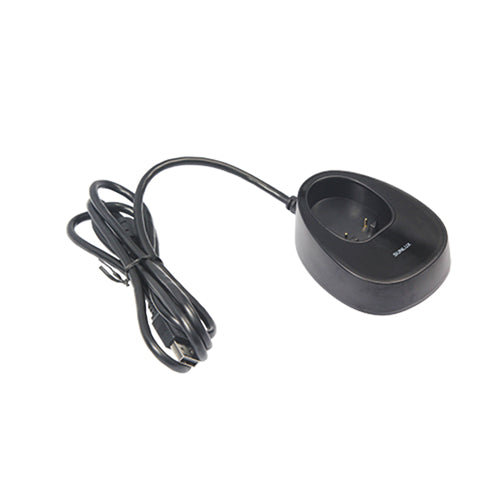

Charging way Base contact charging & Micro USB cable charging
Charging time  4.5H
Standby time 6 months(Dormant state)
Battery Replaceable & Rechargeable lithium battery, 2200mAh
Temperature(Operating) -10°C －50°C
Temperature(Storage) -20°C －60°C
Indicate LED Indicator and Buzzer
Cable Standard 1.6m
Humidity 5%－95%(non-condensing)
Light Source 0－5000Lux(fluorescent light)，0－100,000Lux(daylight)
Decoding Capability 1D:Codabar,Code11,Code39,Code32,Interleaved 2 of 5, Industrial 2 of 5,Matrix 2 of 5,Code93,Code128,GS1-128,UPC-A, UPC-E,EAN 8,EAN 13,GS1 DataBar,RSS14,GS1 DataBar Limited, GS1 DataBar Expanded,etc. 2D: PDF417,Micro PDF417,QR Code,Micro QR, Data Matrix,Aztec Code
