Sunlux XL-3610 Handheld 2D Barcode Scanner

Sunlux XL-3610 Handheld 2D Barcode Scanner

Sunlux XL-3610 Handheld 2D Barcode Scanner

  • Scan precision: 3mil
  • Unique appearance, stylish shape, modern design
  • Decode most popular 1D and 2D barcodes
  • Scan speed: 60fps

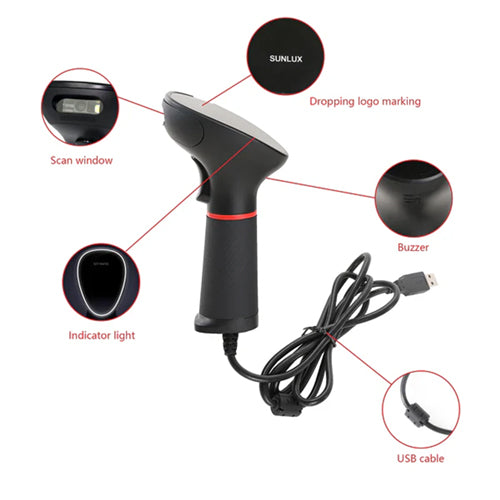

  • With LED Indicator and Buzzer
  • 32 bits ARM CPU
  • Standard of USB interface
  • 1 Year limited warranty

Full Specifications

 Image Sensor CMOS
Light Levels White LED (Lighting) RED aiming light
CPU 32bit ARM
Exposure Global Shutter
Image size 640x480 pixels
Scanning speed 60fps
Decoding Depth 60-360mm（13mil PCS90%）
Minimum Resolution 3mil
Interface USB-HID、USB-VCP、RS232
Scan Mode Manual& Automatic
Materials ABS+TPU
Size L*W*H : 163*68*80(mm)
Weight 185g
Input Voltage DC 3.6V-5.5V
Working current 142mah
Stand-by current 42mah
Temperature(Operating) -10°C －50°C
Temperature(Storage) -20°C －60°C
Indicate LED Indicator and Buzzer
Cable Standard 1.5m
Humidity 5%－95%(non-condensing)
Light Source 0－5000Lux(fluorescent light)，0－100,000Lux(daylight)
Decoding Capability 1D:Codabar,Code11,Code39,Code32,Interleaved 2 of 5, Industrial 2 of 5,Matrix 2 of 5,Code93,Code128,GS1-128,UPC-A, UPC-E,EAN 8,EAN 13,GS1 DataBar,RSS14,GS1 DataBar Limited, GS1 DataBar Expanded,etc. 2D: PDF417,Micro PDF417,QR Code,Micro QR, Data Matrix,Aztec Code
